Our offer for

Anodizing

Anodizing is an electrochemical process that converts the surface of a piece of aluminum into oxide of the same metal. Anodizing is carried out by immersing the aluminum in an acid electrolyte bath. At the same time as the piece is in the acid bath, an electric current passes through the piece and the solution.

It is important to understand that the anode layer is fully integrated with the underlying aluminum substrate and not only applied to the surface as for paint. This allows the piece to obtain a better resistance to wear, corrosion and heat.

Technical Specifications

Several colors of finishes are available for the anodization process:

Feature Image
  • Capacity as large as 18’’ x 60’’ x 30’’
  • Coating removal services available for a new color or a new treatment
  • We have the possibility to offer other anodizing treatment as needed
  • Matte or lustre finish as needed
  • Thickness of the coating controlled according to your specific requirements or the desired standard

Types

MIL-DTL-8625F TYPE II CLASS 1
MIL-DTL-8625F TYPE II CLASS 2

Orders ready in less than 48h Order now!

The steps of our anodizing process

We can provide a compliance letter guaranteeing the standards and quality of our products

Step 1

Cleaning

The part is first cleaned to remove grease, dirt, and oils from its surface.

Step 2

Etch

The part then goes through the etch process, which dissolves a thin layer on the surface of the aluminum, giving a smooth and uniform finish.

Step 3

Anodizing

As mentioned above, anodizing is achieved by immersing the piece in a pool of acid electrolyte. A cathode is then mounted inside the anodizing tank. During processing, aluminum acts as an anode, so that the oxygen ions are released from the electrolyte to combine with the aluminum atoms in the part.

Step 4

Stainning

In this step, alternating current is used to deposit metal tin in the piece. Deposition takes place deep in the pore of the piece and not only on the surface. The intensity of the color depends on the filling density. At Placage Boucherville, we offer clear, black, red, gold and blue anodizing at all times and we offer other custom colours on request.

Step 5

Sealing

Finally, the piece is sealed in a hydrothermal bath at high temperature. This step is essential to ensure that the anodized surface will retain its shine and durability for years to come.
The anodized material is then rinsed, unloaded and checked to validate the quality of the treatment.

Split Image Stats Section

ORDERS READY IN 48H !

Fast processing and delivery

For your small or large projects, we guarantee your SATISFACTION thanks to our expertise, our superior quality and our unbeatable service. This is our promise, and has been for over 20 years.

Get started

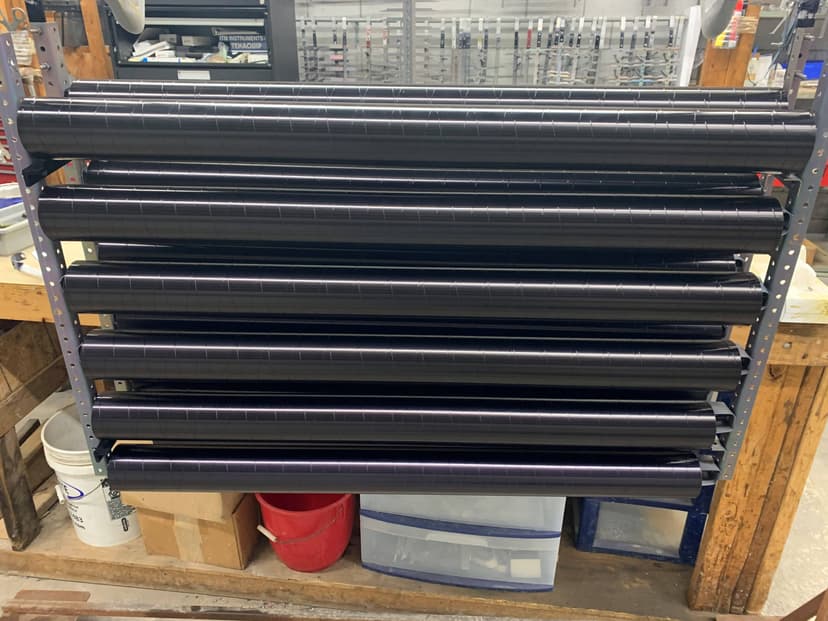

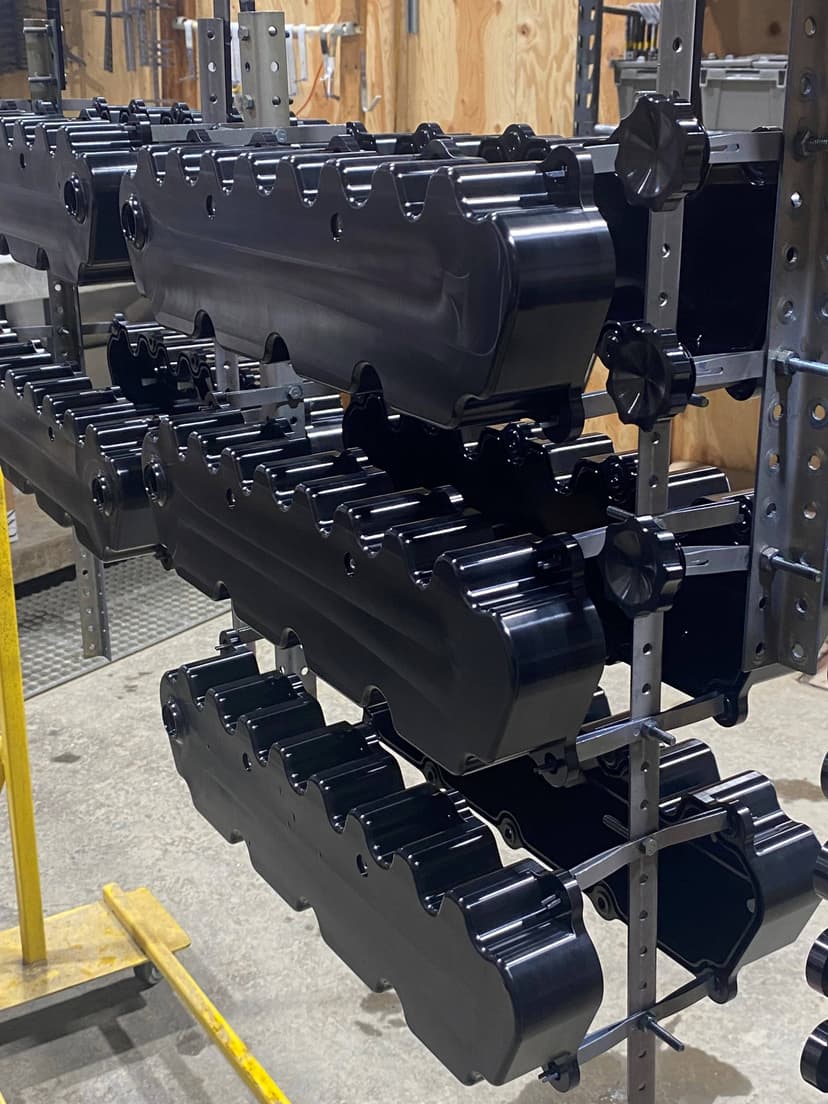

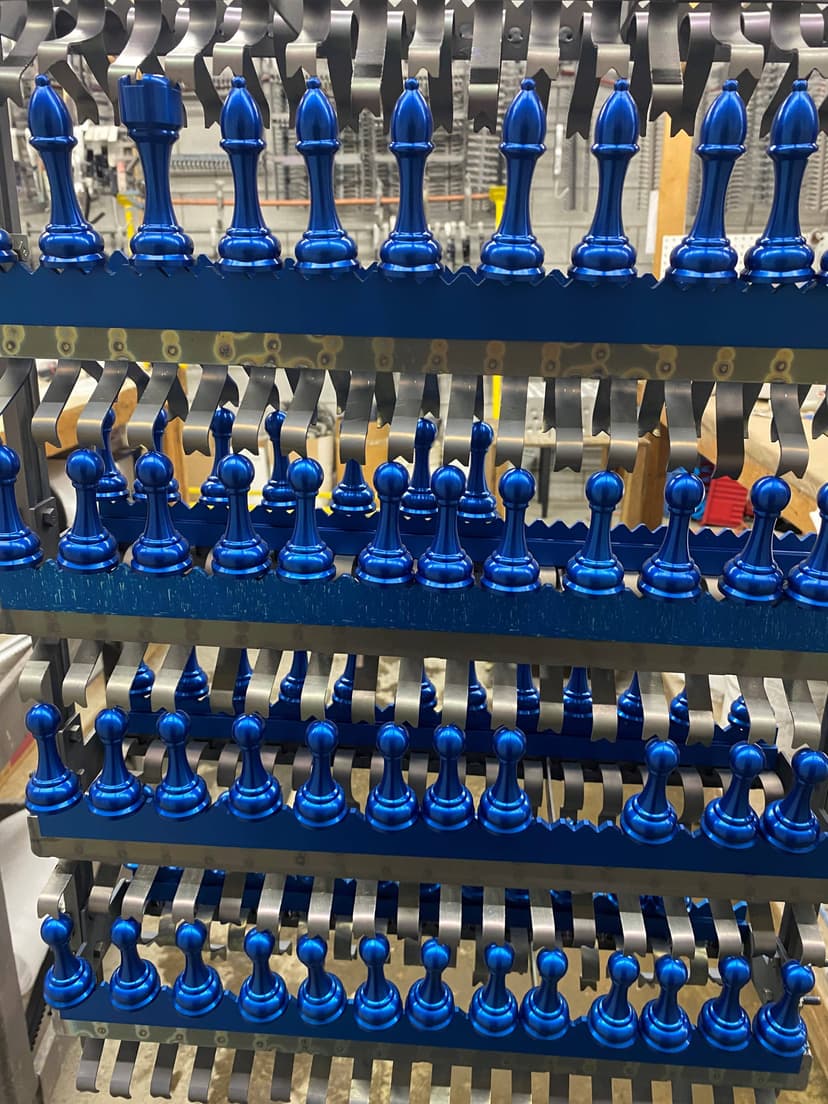

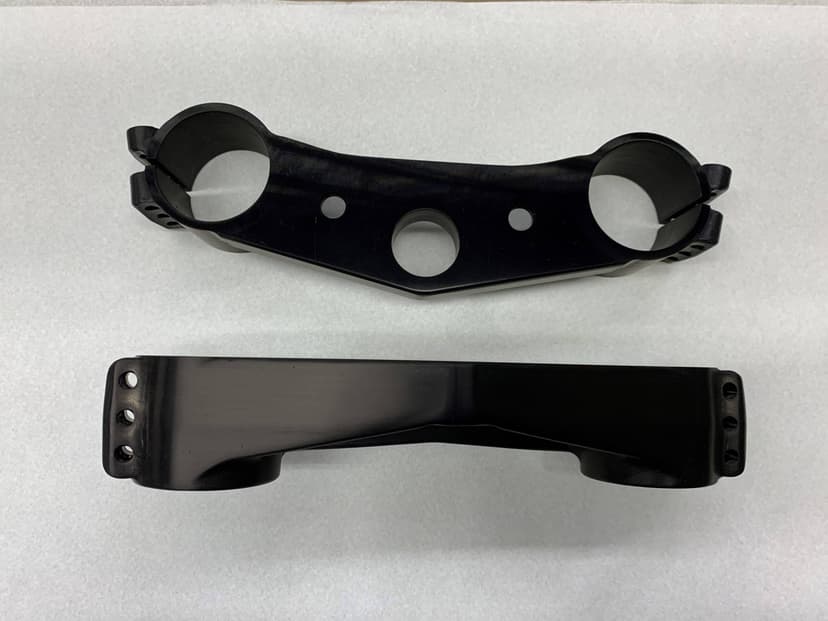

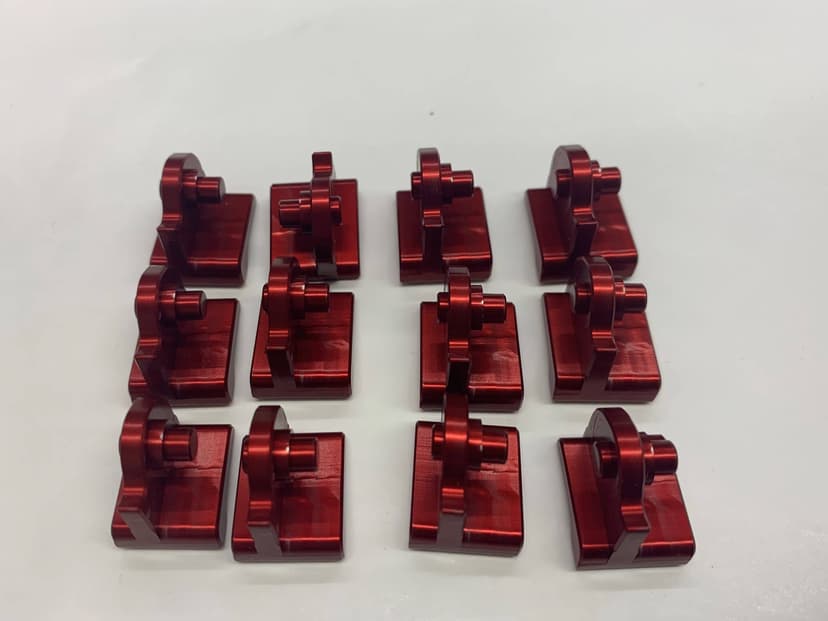

Our realisations

Image Realisation Page
Image Realisation Page
Image Realisation Page
Image Realisation Page
Image Realisation Page
Image Realisation Page
Logo Testimonials Swiper Section Hero

“I am extremely satisfied with Placage Boucherville. The team is very professional and attentive to my needs. Their customer service is impeccable, and I have always received quick and clear answers to my questions. Well done, and keep up the great work!”

Simon Imbeault

“Fast, high-quality service at a great price.


The #1 reference in plating!”

Thierry Drouin Paquette

“Impeccable and affordable service.

I definitely recommend!”

Pascal Corbeil

Pagination Thumbs Swiper Image
Pagination Thumbs Swiper Image
Pagination Thumbs Swiper Image

Contact Us

For a quote submission, please send us the information bellow in the following form or straight to the e-mail address info@placageboucherville.com :

  • Type of plating (Anodizing, Passivation, Iridite, Black Oxide)
  • Color (If anodizing)
  • Material of the part
  • Technical drawing of the part
  • Quantity
